All-On-6: Entire Arch Restoration with DSI Next-Gen Multi-Unit

The wide range of DSI prosthetic parts gives the surgeon the freedom to find the ideal solution for every case.
Here is a perfect example - the removable denture based on the Premium Spiral Implants with a strong multi-unit anchoring the full upper overdenture.

Dr. Oscar Gutierrez Reyes

Cirujano Dentista UAEMex 2001
Especialistsa en Ortodoncia y Ortopedia Maxilar INESO-UNAM 2012
Diplomado en implantologia ISO-UNAM 2016
Odontologo de practica privada en Lerma y Toluca Edomex, Mexico

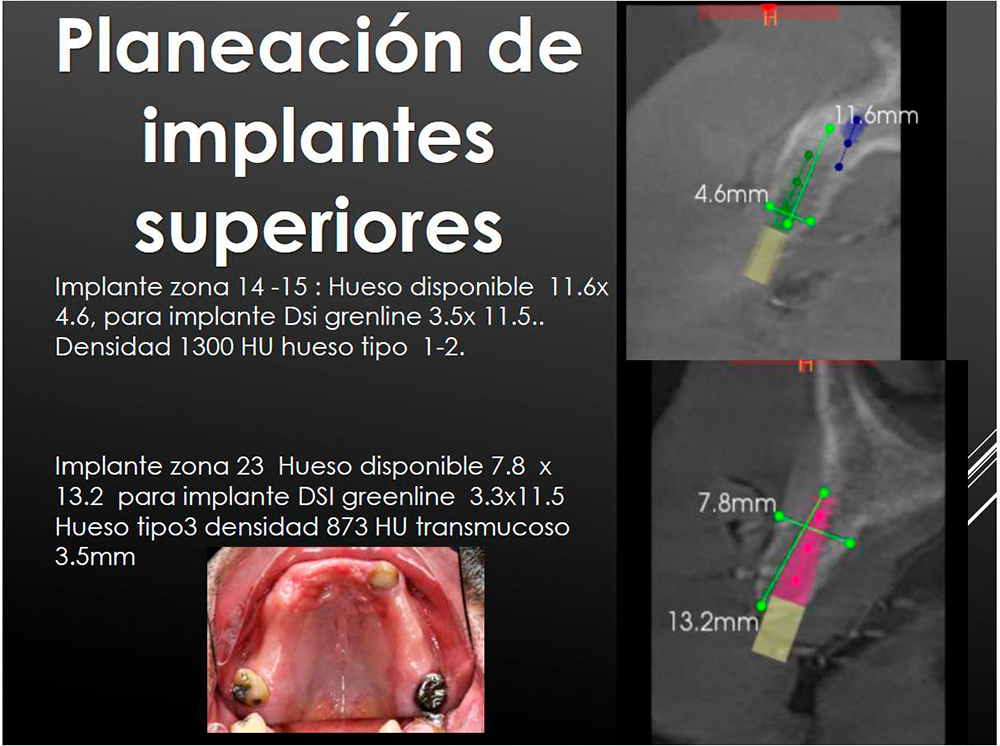

Implant zone 14 -15: Bone available 11.6 x 4.6, Dsi Premium Green Line Implant 3.5x11.5 is used Density 1300 HU bone type 1-2.
Implant zone 23 Bone available 7.8 x 13.2 Dsi Premium Green Line Implant 3.5x11.5

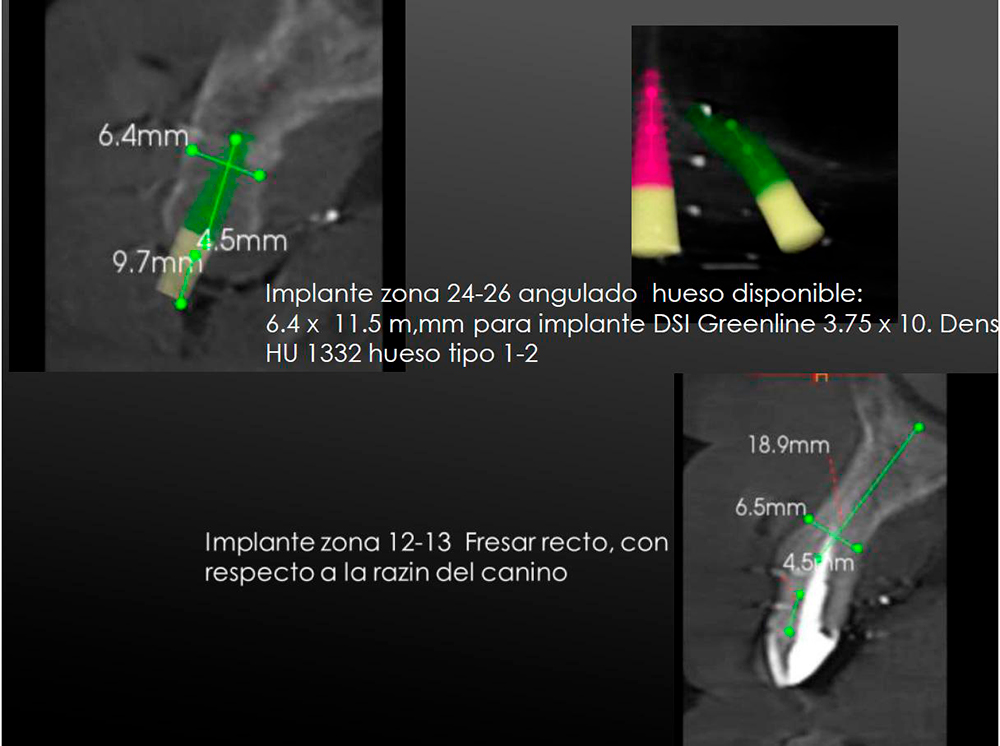

Implant area 24-26 angled bone available:
6.4 x 11.5 m, mm DSI Premium Green Line Implant 3.75 x 10. Density
HU 1332 bone type 1-2

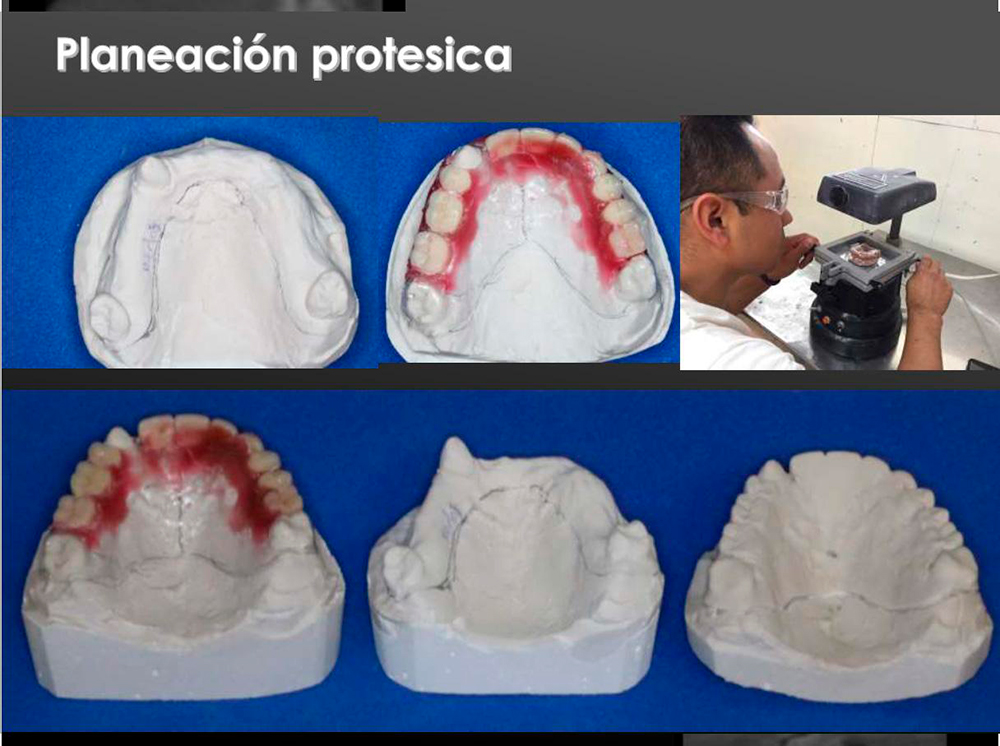

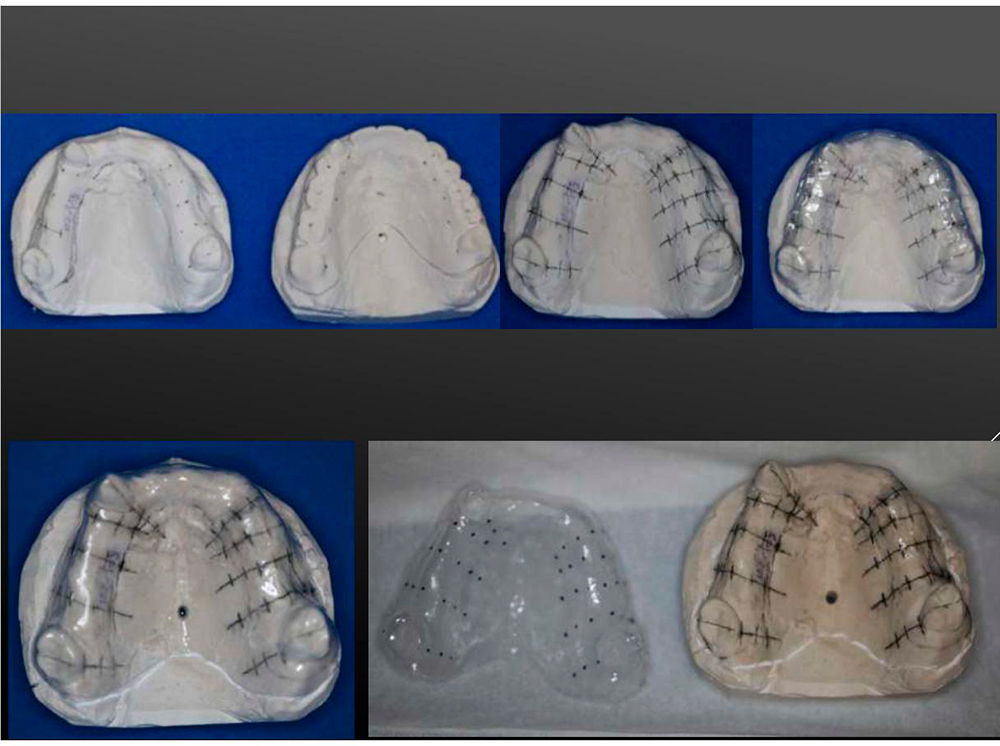

Prosthetic planning; Full overdenture reconstruction arch surgical guide preparing

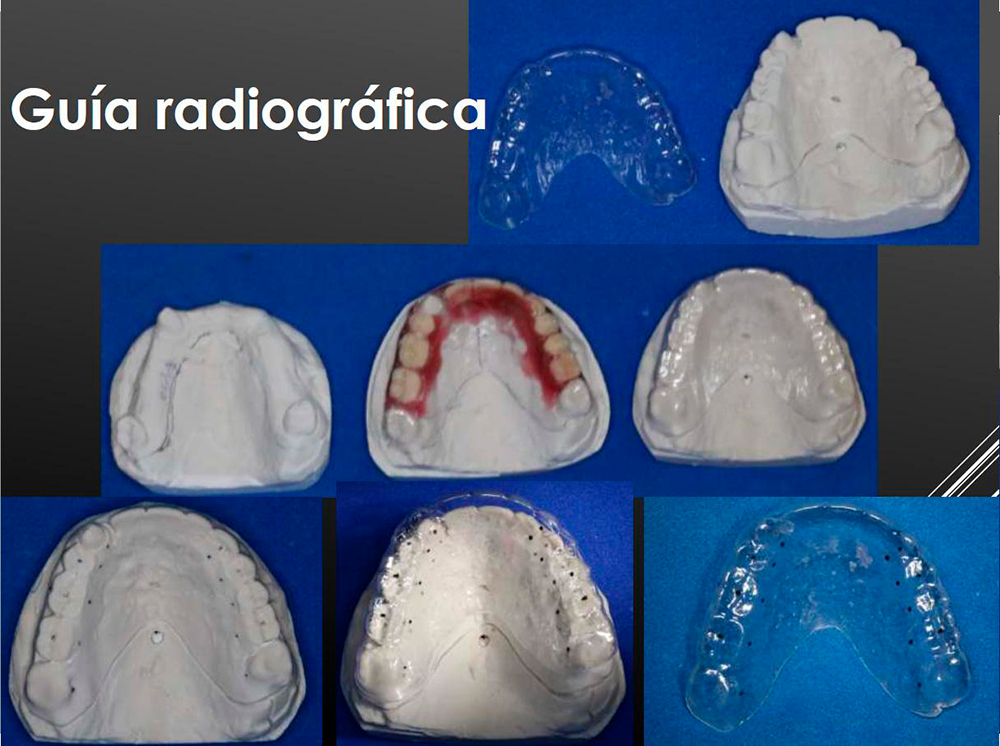

Prosthetic planning; x-ray guide preparing

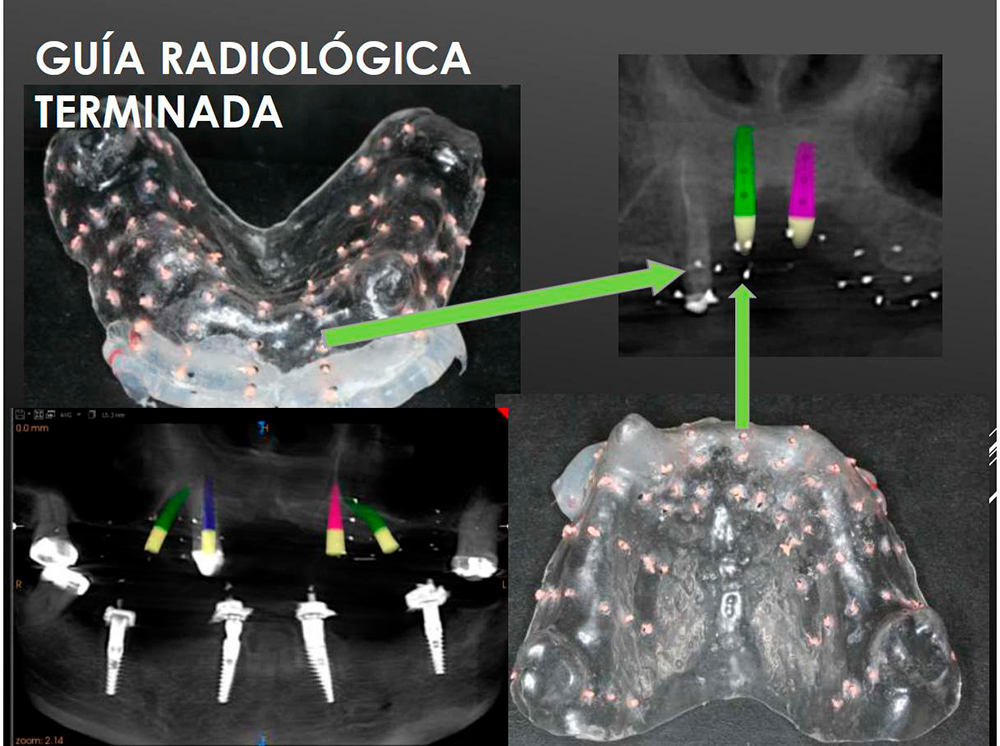

Prosthetic planning; x-ray guide - finished radiologic guide

Surgical removal of the tooth, and socket preparation using surgical guide

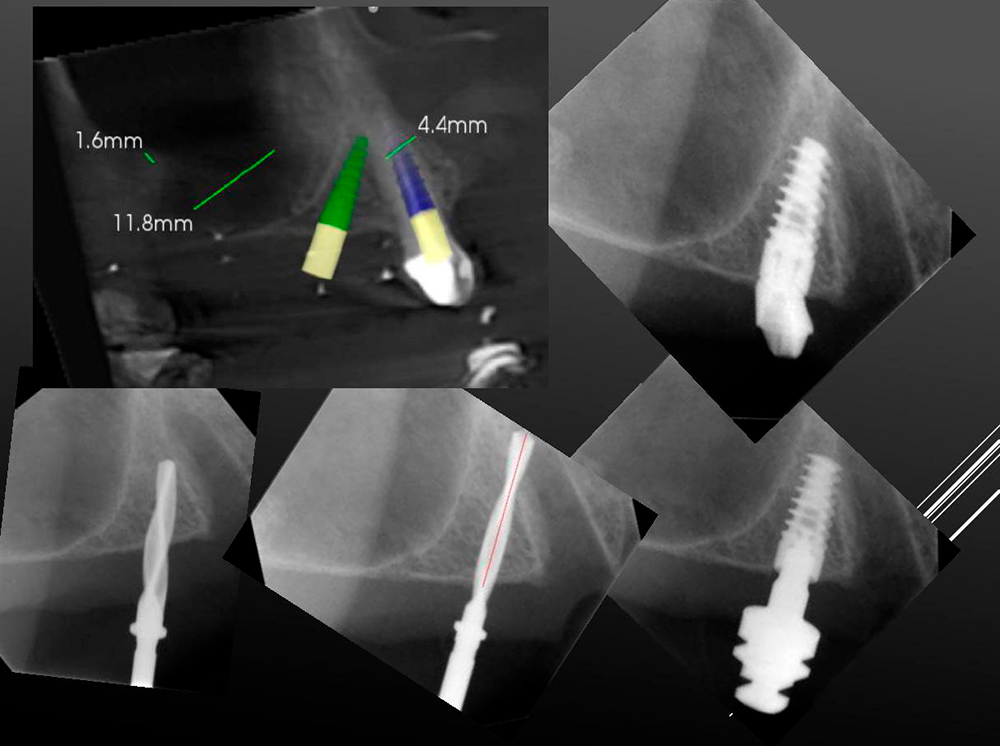

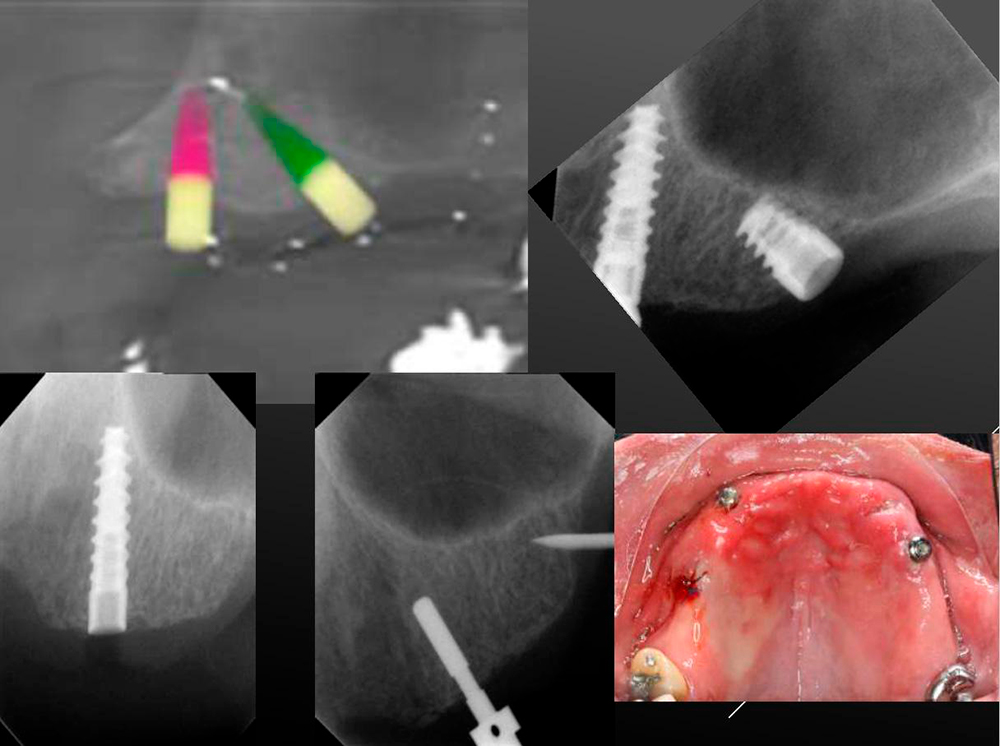

X-ray for more compelling and acurate procedure

Surgical guide insertion for defects and misalignment detection

Final checks and healing abutmets removal


DSI muli-unit transfer impression.
The lower jaw is reconstructed by using the Lock-attachment system. Full restoration was created in a previos visit of the patient

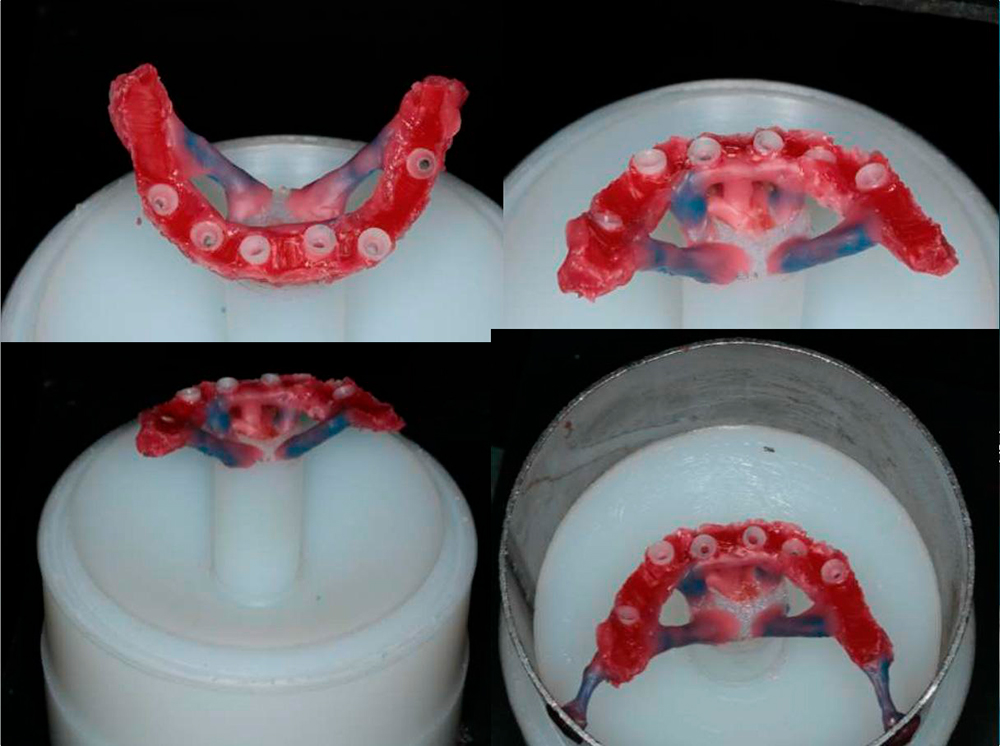

Model application using the DSI plastic sleeve on the multi-unit system

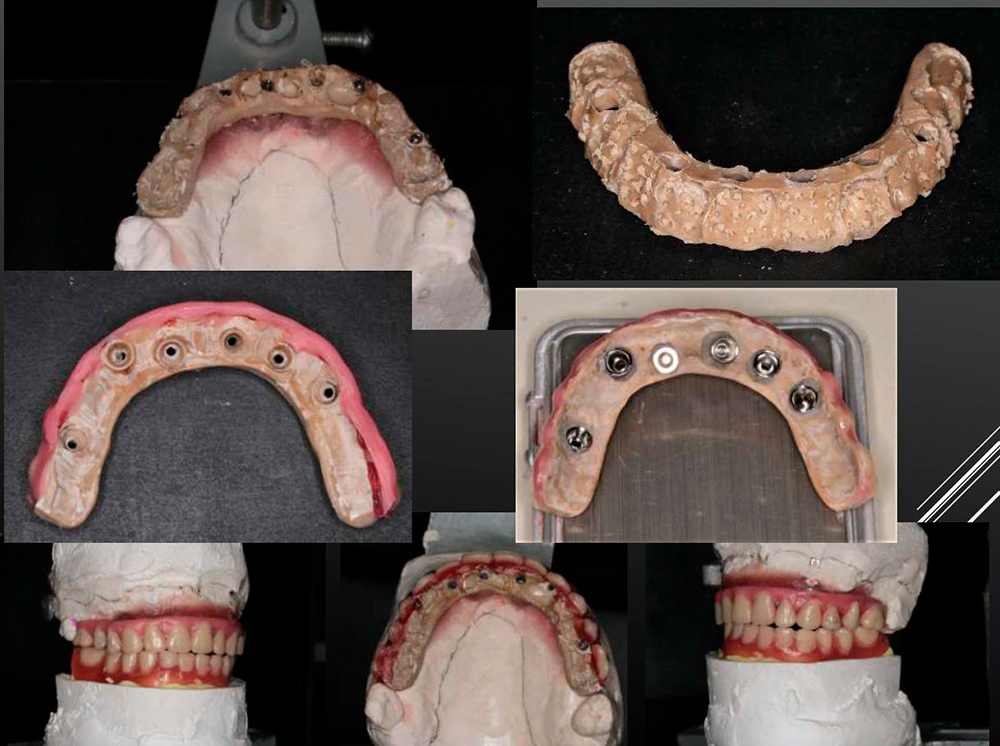

Creation of the model blank for the final restoration

Final restoration denture adjustments

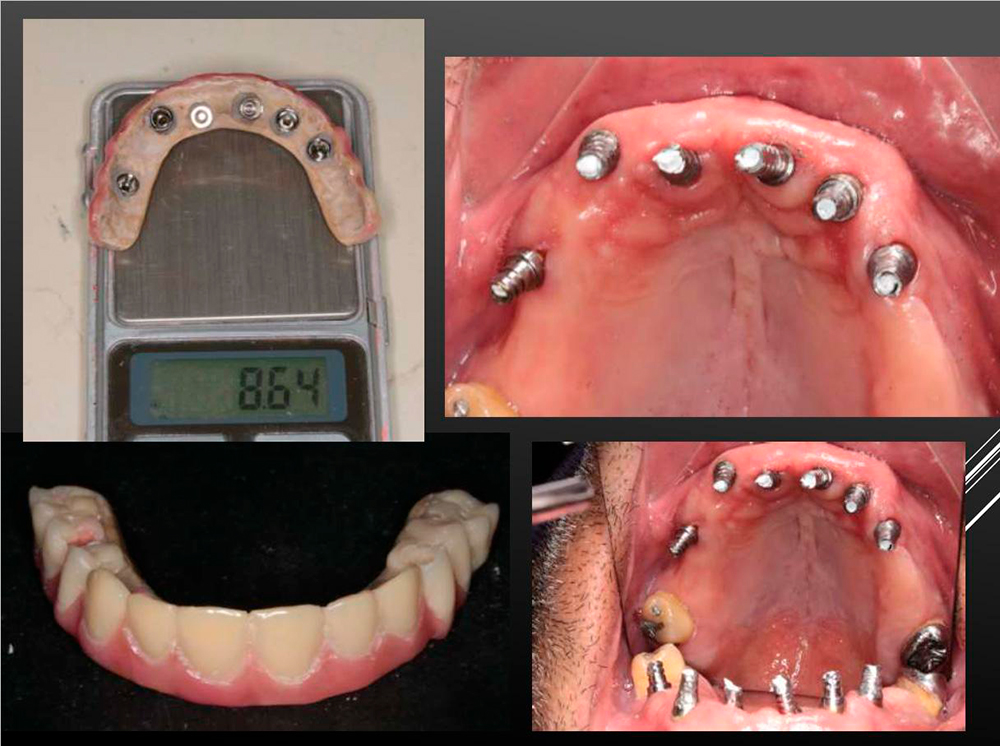

Preparing the patient for the final restoration and cementing the multi-unit attachment system for the folowing procedure.

Final restoration is ready and set in the patient's mouth.
